General Information
TaFlux AF series ultrafiltration membrane modules are designed and manufactured as equivalents, which are used for production of process, potable water and reclaimed water. Major applications are the filtration of surface water, potable water, seawater and industrial wastewater. TFAF75 ultrafiltration modules use naturally hydrophilic PES hollow fiber ultra-filtration membrane with excellent performance.The mode of operation is feed-and-bleed with a minor cross flow or dead-end with regular backwash (with filtrate only) and chemically enhanced backwash.
Features
- A nominal pore size of 0.02 μm
-
Microporous symmetric structure
- New-generation naturally hydrophilic polyethersulfone membrane
- High performance and very good anti-fouling characteristic
- Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
- Membrane filtration provides 99.9999% (LOG 6) reduction of bacteria (pseudomonas diminuta) and 99.99% (LOG 4) reduction of virus (MS2 colifages) by mechanical means.
Advantages
- High quality raw material
- High thermal and chemical solvent resistance
- High chemical tolerance for cleaning
- Optimized design, high resistance to fouling
- Economical equivalent module for direct replacement
Applications
- Surface water
- Potable water
- Seawater desalination
- Pre-treatment of industrial water
- Industrial wastewater

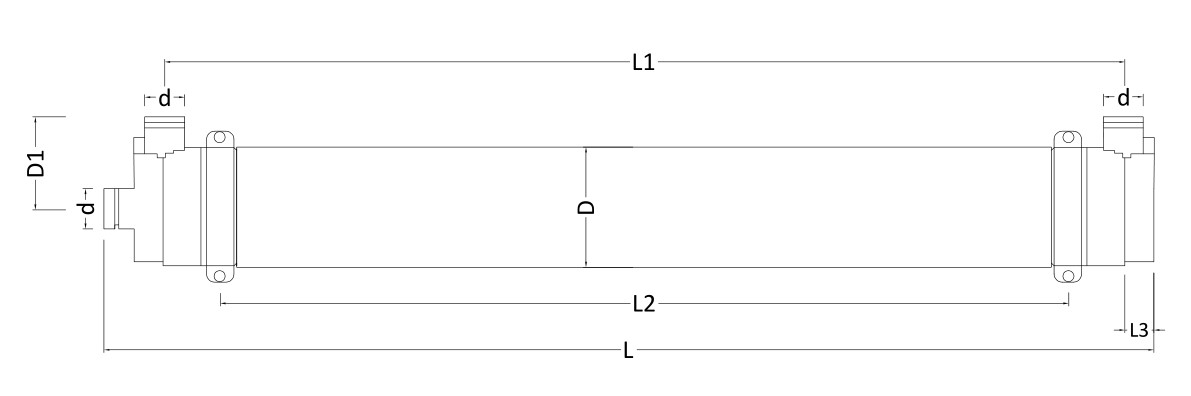

Dimensions
|
Model |
L |
L1 |
L2 |
L3 |
D (mm/inch) |
D1 (mm/inch) |
Feed, Filtrate, Concentrate connection d (mm/inch) |
|
TFAF75 |
1,902/ 74.88 |
1,742/ 68.58 |
1,537.5/ 60.51 |
55/ 2.16 |
220/ 8.66 |
166/ 6.5 |
73.2/ 2.88 |
Specifications
|
Model |
TFAF75 |
|
Effective membrane area (m²/ft²) |
75/807 |
|
Fiber inner diameter (mm/inch) |
0.72/0.028 |
|
Membrane material |
PES (polyethersulfone) |
|
Housing material |
PVC |
|
Flow distributor material |
PVC |
|
Potting material |
Polyurethane resin |
|
Dry weight of membrane module |
34 kg/75 lbs |
|
Wet weight filled with water |
66 kg/145 lbs |
Operating and Cleaning Limits
|
Max. system pressure |
300 kPa (43 psi) |
|
Max. trans-membrane pressure |
300 kPa (43 psi) |
|
Max. backwash pressure |
300 kPa (43 psi) |
|
Temp. range |
0-40℃ (32-104°F) |
|
pH-Continuous operation @ 25℃ |
2 - 12 |
|
pH-CIP @ 25℃ |
1 - 13 |
