General Information

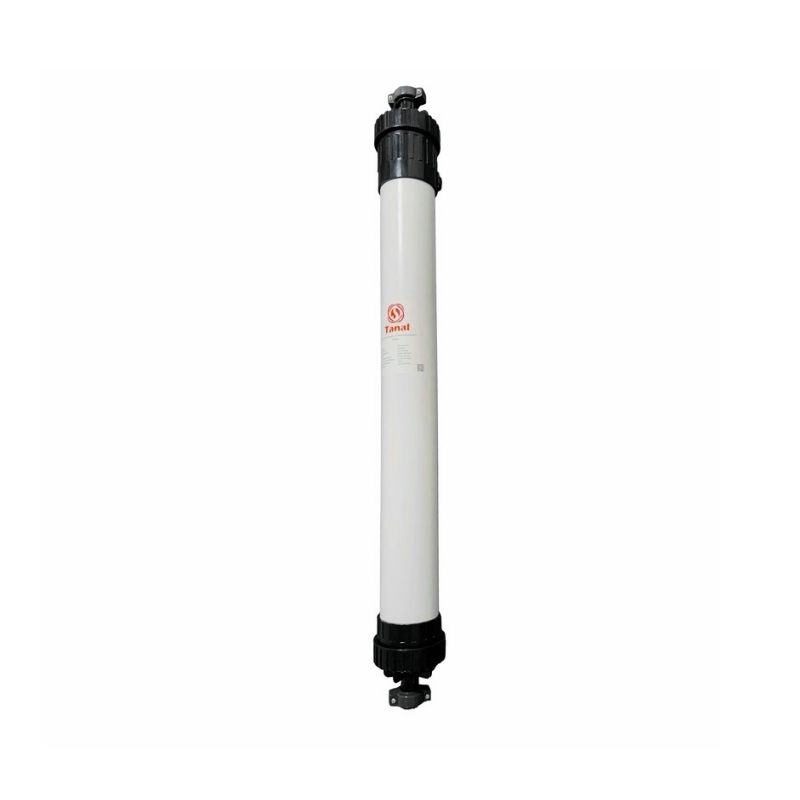

TaFlux ZW 55 series TFZW55C ultrafiltration (UF) membrane module is a pressurized module, which is designed and manufactured for the filtration of surface water, potable water, seawater and industrial reclaimed water reuse. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.TaFlux ZW 55 seriesTFZW55C UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.
Features
- Outside-to-inside flow direction
- New generation PVDF hollow fiber
- Uniform pore size of 0.02 μm
- Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU
Advantages
- High tolerance for feed water
- High-quality filtrate
- Less energy needed with high flux
- Longer service life by high fouling resistance and mechanical strength
- Economical equivalent module for direct replacement
Applications
- Surface water
- Potable water
- Industrial process water
- Reclaimed water reuse
- Pre-treatment of seawater desalination

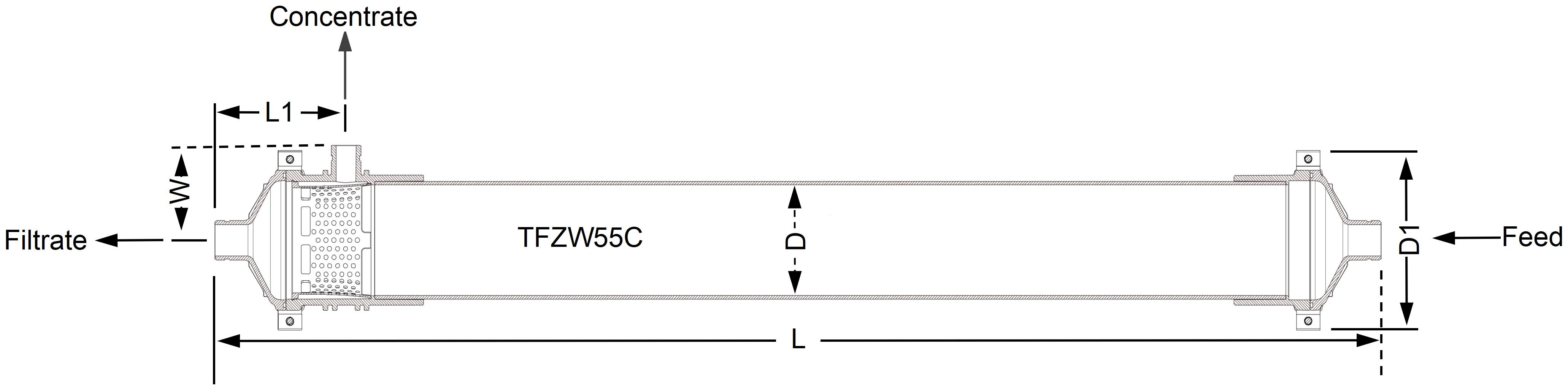

Module Dimensions
|
Model |
L |
L1 |
D |
D1 (mm/inch) |
W (mm/inch) |
Feed/Filtrate port |
Concentrate port |
Joint type |
|
TFZW55C** |
1,919/75.55 |
216/8.5 |
219/8.26 |
180/7.09 |
145/5.71 |
DN50 Victaulic |
DN40 Victaulic |
SS clamp |
Specifications
|
Effective membrane area |
55.7 m² (600 ft²) |
|
Membrane material |
PVDF (Polyvinylidene Fluoride) |
|
Pore size |
0.02 μm |
|
Membrane surface properties |
Hydrophilic and non-ionic |
|
Fiber ID/OD |
0.65/1.2 mm (0.03/0.05 inch) |
|
Housing material |
UPVC |
|
Potting material |
Epoxy resin |
|
Wet weight filled with water |
32 KG (70.5 lbs) |
|
Shipping weight |
37 KG (80 lbs) |
Operating and Cleaning Limits
|
Flow direction |
Outside-in |
|
Type of operation |
Dead-end flow or cross flow |
|
Design flux (25°C) |
40 - 120 L/m2·h (24 - 71 gfd) |
|
Temperature |
1 - 40°C (34 - 104°F) |
|
Maximum feed pressure (20°C) |
0.4 MPa (58 psi) |
|
Maximum trans-membrane pressure |
0.28 MPa (40.6 psi) |
|
Backwash flux (25°C) |
33.7 - 135 L/m2·h (19.8-79.4 gfd) |
|
Maximum backwash pressure |
0.25 MPa (36 psi) |
|
Maximum air scour feed pressure |
0.15 MPa (21.8 psi) |
|
Backwash flow |
1.8 m3/h (8 gpm) |
|
Air scour flow |
4-8.5 Nm3/hr (2.4 - 5 scfm) |
|
pH-Continuous operation @25°C |
2 - 11 |
|
pH-Cleaning @25°C |
2 - 12 |
|
Maximum NaClO |
1,000 mg/L |
|
Maximum feed TSS |
100 ppm |
|
Maximum feed turbidity |
300 NTU |
|
Maximum feed particle size |
300 µm |
|
Filtrate SDI15 |
≤ 2.5 |
|
Filtrate turbidity |
≤ 0.1 NTU |
