General Information

TFAF64 is manufactured as an equivalent, direct replacement, alternative, analog, retrofit and analogue to replace Aquaflex 64, which is an ultrafiltration module, used for production of process, potable and wastewater. Major applications are the filtration of surface water, potable water, industrial wastewater and municipal effluent. TFAF64 uses naturally hydrophilic PES hollow fiber ultra-filtration membrane with excellent performance, so customers are using many of them as ultrafiltration (UF) module equivalents.
The mode of operation is feed-and-bleed with a minor cross flow or dead-end with regular backwash(with permeate only) and chemically enhanced backwash.

Features

• A nominal pore size of 0.02 μm
• Microporous symmetric structure
• Naturally hydrophilic membrane composed of a blend of polyethersulfone and polyvinylpyrrolidone
• High performance and very good anti-fouling characteristic
• Typical filtrate quality SDI < 3, turbidity < 0.1 NTU
• Membrane filtration provides 99.9999% (LOG 6) reduction of bacteria (Pseudomonas diminuta) and 99.99% (LOG 4) reduction of virus (MS2 colifages) by mechanical means.


Advantages

• High quality raw material
• High thermal and chemical solvent resistance
• High chemical tolerance for cleaning
• Optimized design, high resistance to fouling
• Direct and economical module replacement

Applications

• Surface water
• Potable water
• Seawater desalination
• Pre-treatment of industrial water
• Industrial wastewater
• Municipal sewage

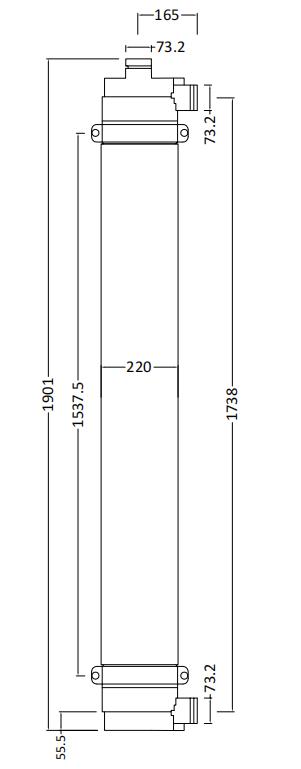

Module Dimensions

Physical and Operating Specifications

Specifications	Parameters
Model	TFAF64
Effective membrane area (m²/ft²)	64/689
Fiber diameter (mm/inch)	0.77/0.03
Membrane material	PES
Housing material	PVC, white
Flow distributor material	PVC
Potting material	Polyurethane resin
Max. system pressure	300 kPa (43 psi)
Max. trans-membrane pressure	300 kPa (43 psi)
Max. backwash pressure	300 kPa (43 psi)
Temp. range	0-40℃ (32-104°F)
pH-Continuous operation @ 25℃	2-12
pH-CIP @ 25℃	1-13
Dry weight of membrane module	34 kg/75 lbs
Wet weight filled with water	66 kg/145 lbs
