General Information

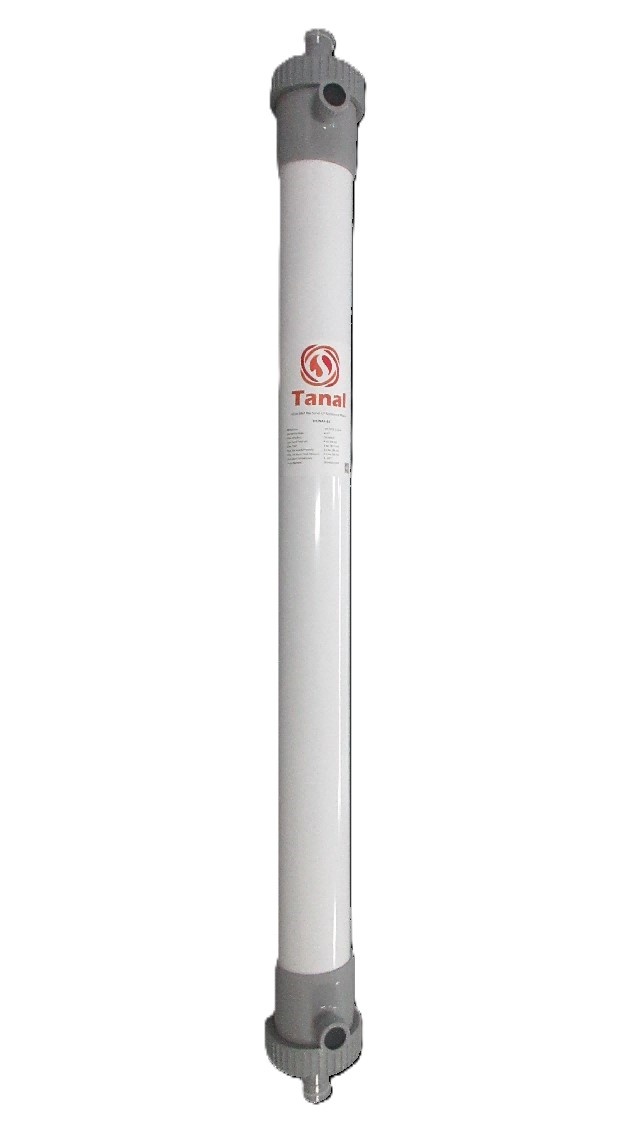

TaFlux UNA Pro series TFUNAP-50 ultrafiltration (UF) membrane modules are pressurized integrated modules, which are designed and manufactured for the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These UF modules are made of upgraded new generation TIPS PVDF hollow fibers with extra permeability.
TaFlux UNA Pro series UF modules are applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.
Features
- Outside-to-inside flow direction
- New generation TIPS PVDF hollow fiber
- Uniform pore size of 0.1 μm
- Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU
Advantages
- Upgraded design for easy installation
- High-quality filtrate
- Less energy needed by extra high permeability
- Longer service life by high fouling resistance and mechanical strength
-
Direct and economical module replacement
Applications
- Surface water
- Potable water
- Beverage clarification
- Reclaimed water reuse
- Industrial wastewater
-
Pre-treatment of sea water desalination
Module Dimensions
|
Model |
L (mm/inch) |
L1 (mm/inch) |
D (mm/inch) |
D1 (mm/inch) |
Feed and Filtrate Connector |
Concentrate Connector |
|
TFUNAP-50 |
2418/95.2 |
1990/78.3 |
215/8.5 |
165/6.5 |
ANSI 2" |
JIS 40A Union |
Specifications
|
Model |
TFUNAP-50 |
|
Effective membrane area |
50 m² (539 ft²) |
|
Volume |
53 L (14 gallon) |
|
Dry weight |
30 KG (66 lbs) |
|
Wet weight filled with water |
60 KG (132 lbs) |
|
Membrane material |
PVDF (Polyvinylidene Fluoride), TIPS |
|
Fiber ID/OD |
0.6/1.2 mm (0.02/0.05 inch) |
|
Flow direction |
Outside-in |
|
Pore size |
0.1 μm |
|
Housing material |
ABS |
|
Potting material |
Polyurethane |
Operating and Cleaning Limits
|
Type of operation |
Dead-end flow or cross flow |
|
Design flux (25°C) |
40 - 110 L/m2·h (24 - 65 gfd) |
|
Temperature |
1 - 40°C (34 - 104°F) |
|
Maximum feed pressure (25°C) |
4 bar (58 psi) |
|
Maximum trans-membrane pressure |
3 bar (43.5 psi) |
|
Backwash flux (25°C) |
80 - 120 L/m2·h (48 - 71 gfd) |
|
Maximum backwash pressure |
2.5 bar (36 psi) |
|
Maximum air scour feed pressure |
2.5 bar (36 psi) |
|
Maximum air scour flow |
4 - 12 Nm3/h (2.4 - 7.1 scfm) |
|
pH-Continuous operation @25°C |
1 - 10 |
|
Maximum NaClO |
2,000 mg/L |
|
Maximum feed TSS |
100 ppm |
|
Maximum feed turbidity |
300 NTU |
|
Maximum feed particle size |
300 µm |
|
Filtrate SDI15 |
≤ 2.5 |
|
Filtrate turbidity |
≤ 0.1 NTU |
