Tanal
Module Part number : UFPESEHF55
Membrane Specifications
Material polyethersulfone(PES)
Outer Diameter 1.3 mm / 0.051 inch
Inner Diameter 0.77 mm / 0.03 inch
Pore Size 0.03 μm
Bacteria Rejection > 99.9999%
Tensile Force 11-12 N

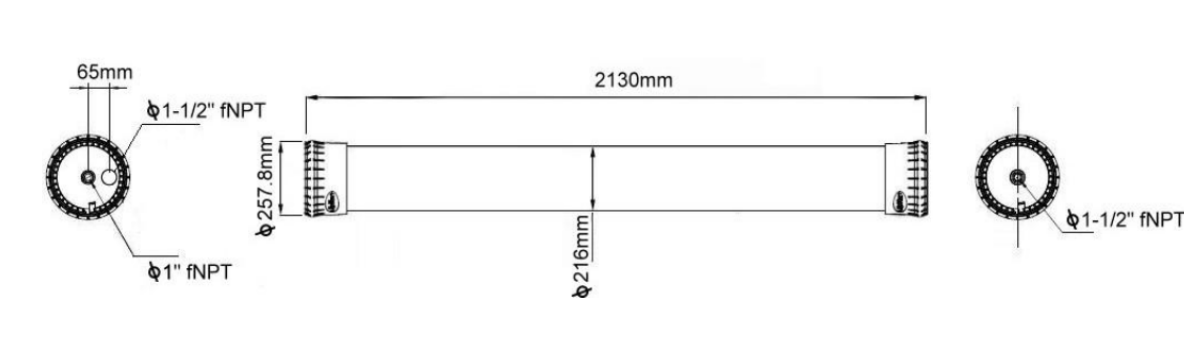

Module Dimensions
|
Dimensions |
L1 |
L1 |
⌀D1 |
⌀D2 |
|
mm |
2,130 |
65 |
216 |
257.8 |
|
inch |
83.86 |
2.56 |
8.5 |
10.15 |
Module Specifications
Dimensions (Overall Dia. x Length) 257.8 x 2,130 mm / 10.2 x 83.9 inch
Membrane Area 55 m2 / 592 ft2
Feed Inlet 1.5 inch NPT
Permeate Outlet 1.5 inch NPT
Reject Outlet 1.0 inch NPT
Dry Weight 55 kg / 121 lbs
Wet Weight 95 kg / 209 lbs
Housing Material PVC
End Caps PVC
Sealant Epoxy Resin
Operating Specifications
Membrane Area 55 m2
Clean Water Flux @ 30℃ 200 LMH / 118 GFD
Module Flux 1.75-7.5 m3/h
Operating pH 2-10
Cleaning pH 2-11
Temperature 5-40℃
Max Inlet Pressure(20℃) 2.5 Bar
Max Air Flux 8 Nm3/h
Max. Continuous Chlorine 200 ppm
Max. Feed TSS 100 mg/L
Max. Feed Turbidity 300 NTU
Permeate TSS ≤0.5 mg/L
Permeate Turbidity ≤0.1 NTU
Permeate SDI ≤3.0
Max Operation TMP 2.1 Bar
Max Backwash Pressure 2.5 Bar
Max. Cleaning NaOCl 500 ppm
Max. Continuous NaOCl 10 ppm
