Description

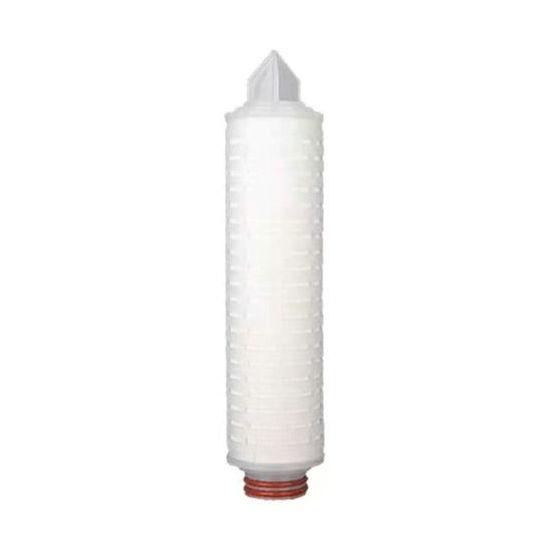

TaPleat series PP pleated filter cartridge is a pleated filter element of polypropylene. These pleated water filters are for sediment removal in water process.

TaPleat series polypropylene pleated filter cartridge is specifically developed to provide the optimum solution for particulate removal in clarification and prefiltration of process, representing a highly-optimized pleated filter technology. The unique filtration media of 100% polypropylene results in an absolute-rated filtration efficiency, which largely reduces the burden of downstream process for particle removal applications in liquids and gases.

Specifications

Materials of Structure:

• Filter media: Microfiber polypropylene
• Hardware: Polypropylene
• Cage: Polypropylene
• Support material: Polypropylene
• Sealing:    Thermal bond
• Gasket/O-ring: Silicone, EPDM(ethylene propylene), NBR(nitrile), Viton(fluorocarbon elastomer), FEP encapsulated Viton, FEP encapsulated silicone

Size:

• Outer diameter: 6.6 cm(2.6”)
• Lengths: 10.2 cm (4"), 24.8 cm(9.75"), 25.4 cm(10"), 49.5 cm(19.5"), 50.8 cm(20"), 74.3 cm(29.25"), 76.2 cm(30"), 99.1 cm(39"), 102 cm(40"), 127 cm(50”)

Removal Ratings:

• 0.1 μm, 0.2 μm, 0.3 μm, 0.5 μm, 0.6 μm, 0.8 μm, 1 μm, 1.2 μm, 1.5 μm, 2 μm, 2.5 μm, 3 μm, 4.5 μm, 5 μm, 10 μm, 15 μm, 20 μm, 25 μm, 30 μm, 40 μm, 50 μm, 70 μm, 75 μm, 90 μm, 100 μm, 125 μm

Features

• Absolute micron retention ratings
• Highly consistent, reproducible performance
• High surface area, high flow rates with low pressure drops
• Unique filtration media for backwash regeneration against insoluble particulate
• Various configuration in lengths, retention ratings and adaptors

Applications

• Bottled water and mineral water
• Wineries, breweries, soft drinks, spirits and syrups
• Aqueous, alcoholic, acidic and dairy foodstuffs
• Diatomaceous earth or carbon fine trap
• High-purity pharmaceutical water systems, solvent & fermentation feed streams
• Reagents & buffers, bulk pharmaceutical chemicals & intermediates
• Toiletries and cosmetics, orals & topicals
• RO system and spray nozzle protection
• Chemicals
• Micro-Electronics and Semi-conductors
• Pulp & paper and textiles
• Process water and waste water
• Air prefiltration
• Environmental etc.

Ordering Guide

Cartridge

Material

Nominal Length

Removal Rating

Adaptor*

Gasket/O-ring Material

FCTP

PP

=Polypropylene

04   09   10   19 20   29 30   39 40   50

=4” =9.75" =10" =19.5" =20" =29.25" =30" =39" =40" =50"

01   02 03 05   06 08 1   1.2   1.5   2 2.5   3   4.5

=0.1 μm =0.2 μm =0.3 μm =0.5 μm =0.6 μm =0.8 μm =1 μm =1.2 μm =1.5 μm =2 μm =2.5 μm =3 μm =4.5 μm

5 10 15 20   25   30   40 50 70   75   90   100   125

=5 μm =10 μm =15 μm =20 μm =25 μm =30 μm =40 μm =50 μm =70 μm =75 μm =90 μm =100 μm =125 μm

0  2   3  7   8 28

=DOE =226 O-rings with 2 locking tabs and 316L SS insert, flat end =222 O-rings, flat end =226 O-rings with 2 locking tabs and 316L SS insert, fin end =222 O-rings, fin end =222 O-rings with 3 locking tabs, fin end

S  E  N  V  FV   FS

=Silicone =EPDM =Nitrile =Fluorocarbon elastomer =FEP encapsulated Viton =FEP encapsulated silicone

Example part number: FCTPPP301.57S refers to TaPleat PP pleated filter cartridge, 30", 1.5 μm, 226 O-rings with 2 locking tabs and 316L SS insert, fin end, silicone O-rings.
*For more options on adaptor, please refer to Adaptor Guide from Tanal.
