TaFlux HFU Series

General Information

TaFlux HFU series ultrafiltration (UF) membrane module is a pressurized module, which is designed and manufactured for the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.
TaFlux HFU series UF module is applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes
.

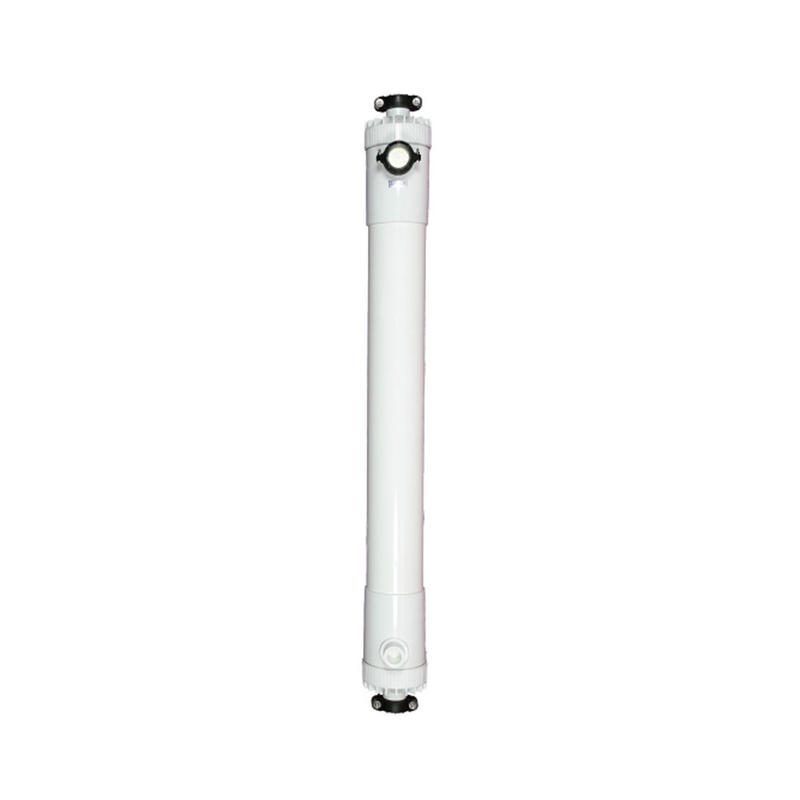

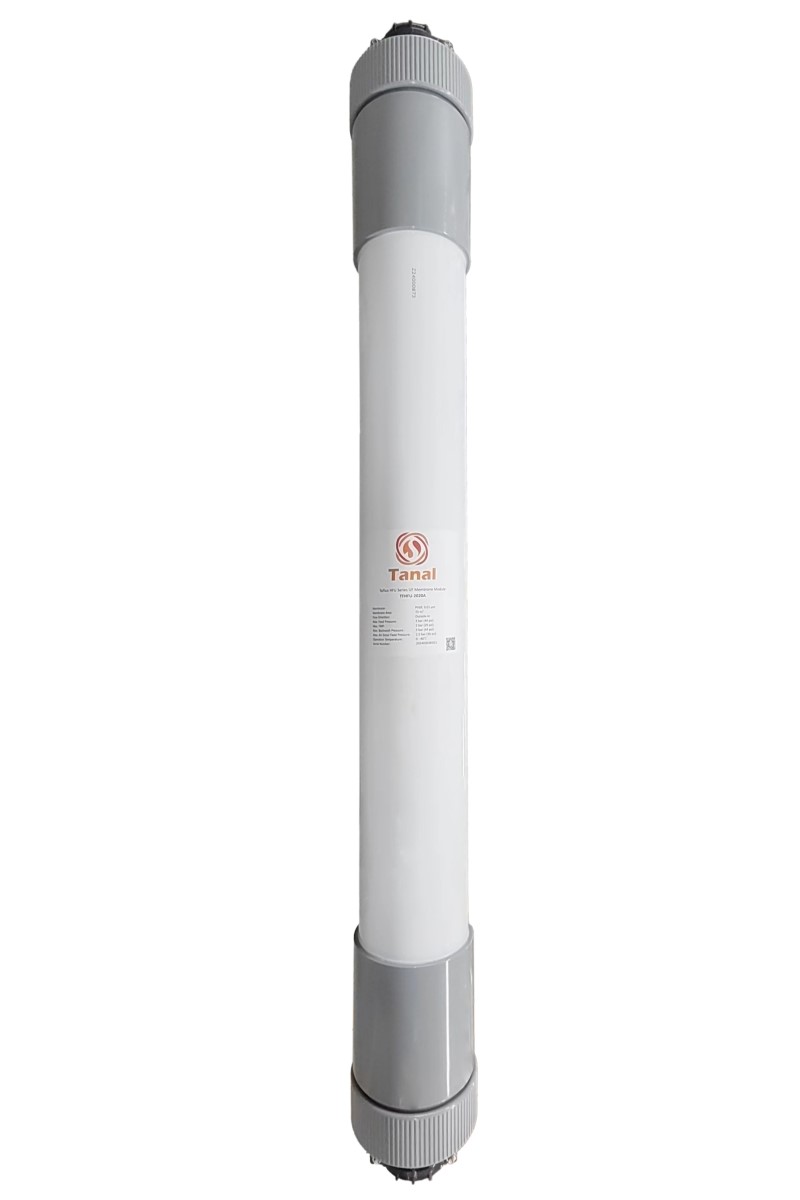

TaFlux HFU Series PVDF UF Membrane Module

Features

  • Outside-to-inside flow direction
  • New generation PVDF hollow fiber
  • Nominal pore size of 0.01 μm
  • Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

  • High tolerance for feed water and high-quality filtrate
  • Smaller footprint design with CAPEX reduction
  • Less energy needed by high flux
  • Longer service life by high fouling resistance and mechanical strength
  • Direct and economical module replacement

Applications

  • Surface water
  • Well water
  • Potable water
  • Industrial process water
  • Reclaimed water reuse
  • Pre-treatment of sea water desalinationn

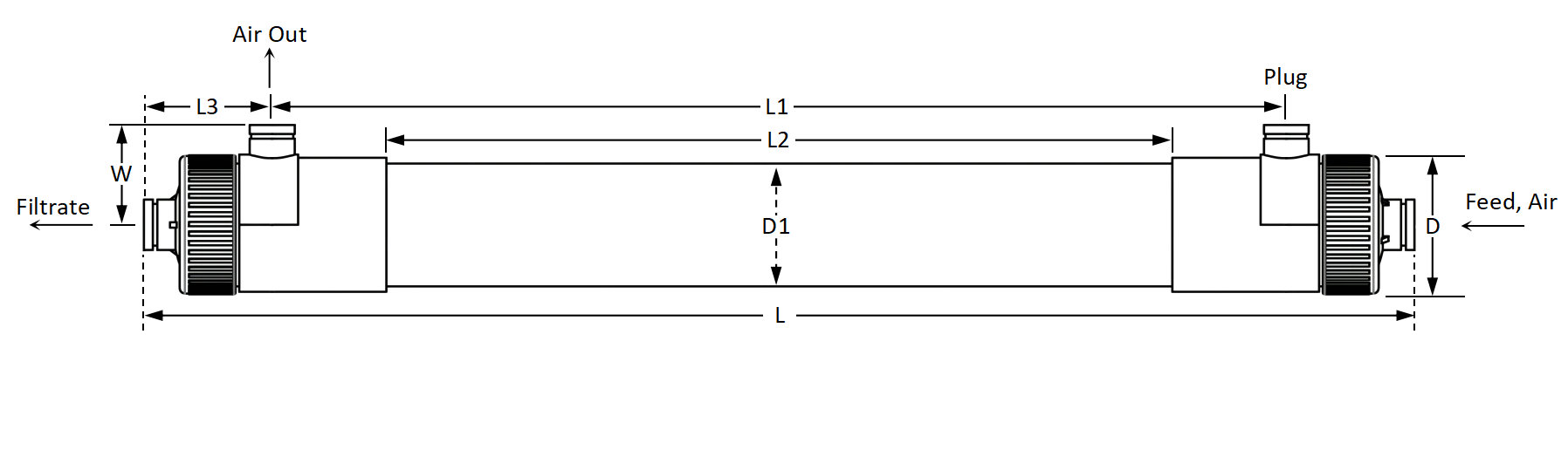

Module Dimensions


Type

L
(mm/in)


L1
(mm/in)


L2
(mm/in)


L3
(mm/in)


D
(mm/in)


D1
(mm/in)


W
(mm/in)


Feed, Filtrate

Concentrate

1020

1,120/

44.09

684/

26.93

274/

10.79

218/

8.58

248/

9.76

216/8.5

175/

6.89

Φ89.1/DN80

Φ76.3/

DN65

2020

2,160/

85.04

1,724/

67.87

1,314/

51.73

Specifications

Specifications

Parameters

Membrane material

PVDF (Polyvinylidene Fluoride)

Flow direction

Outside-in

Pore size

0.01 μm

Housing material

PVC

End caps material

PVC

Potting material

Epoxy resin

Caps & nuts with housing

Integrated

O-rings material

EPDM

Operating and Cleaning Limits

Type of operation

Dead-end flow

Design flux (25°C)

36-120 L/m2·h (21.6-71 gfd)

Temperature

0-40°C (32-104°F)

Maximum feed pressure (25°C)

3 bar (44 psi)

Maximum trans-membrane pressure

2 bar (29 psi)

Maximum backwash pressure

3 bar (44 psi)

Maximum air scour feed pressure

2.5 bar (36 psi)

Maximum air scour flow

9 Nm3/hr (5.3 scfm)

pH continuous operation @ 25°C

2-11

pH cleaning @ 25°C

1-12

Maximum NaClO

3,000 mg/L

Maximum NaClO exposure (lifetime contact time) as Cl2

1,000,000 mg/L hours

Maximum feed TSS

100 ppm

Maximum feed turbidity

300 NTU

Maximum feed particle size

300 µm

Filtrate SDI15

≤ 2.5

Filtrate turbidity

≤ 0.1 NTU
