Description

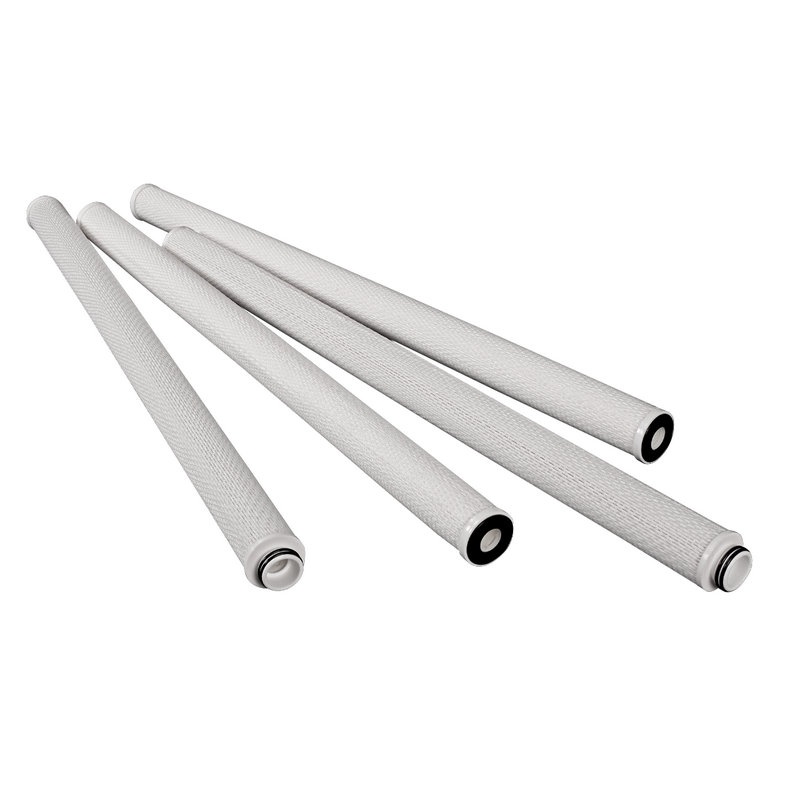

FluidPure filter cartridge is a pleated depth filter cartridge, being used for well completion fluids, workover fluids and water injection in oilfield of oil and gas industry. Developed and manufactured as a highly effective filter cartridge, FluidPure filter cartridge has been proven to be extremely efficient in the protection of downstream process.Outer net design enables a higher filtration area, meanwhile the robust inner core strengthens the cartridge, resists high pressure and increases the maximum pressure drop. Selected high-quality fiber forms uniform pore sizes, and the combination of surface filtration, depth filtration and suitable diversion layer result in a long service life. Extra large filtration area means less cartridges, housings, labor and capital required for the same capacity.
FluidPure filter cartridges are offered with industry standard adaptor to fit in existing filter housings.
Specifications
Materials of Structure:
•Filtration Media: Glass fiber, Polypropylene, Polyester•Diversion Layer: Polypropylene
•Supporting Layer: Polypropylene
•Core: ABS, Polypropylene
•Outer Net: Poly Ethylen
•End Caps: ABS, Polypropylene
•O-Rings: EPDM, Butyronitrile (NBR), Viton
Size:
•Outer Diameter: 63.5 mm•Inner Diameter: 28 mm
•Length: 10″, 20″, 30″, 40″
Removal Rating:
•1 μm, 2 μm, 3 μm, 5 μm, 10 μm, 20 μm, 50 μm
Adaptor:
•DOE, 222-Flat
Features
•High dirt holding for a long service life•High flow rate to less cartridge, labor and capital
•Low initial pressure drop
•High filtration efficiency
•Economical for all equivalents
Applications
•Well completion fluids•Workover fluids
•Water injection
Operating Conditions
Max. Pressure Drop:•5.0 bar@20℃
•2.1 bar@80℃
Recommended Replacement Pressure Drop:
•2.5 bar@20℃
Ordering Guide (Part Number)
|
Cartridge |
Material |
Nominal Length |
Removal Rating |
Adaptor |
Gasket / O-ring Material |
|||||
|
FCFP |
GF |
=Glass Fibre |
10 |
=10" |
1 |
=1 μm |
0 |
= DOE |
E |
=EPDM |
