TaFlux HFU series ultrafiltration (UF) membrane module TFHFU-2020AG is a pressurized module, which is designed and manufactured for the filtration of surface water, potable water, seawater, industrial wastewater and municipal sewage. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.TaFlux HFU series UF module is applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.
Features
- Outside-to-inside flow direction
- New generation PVDF hollow fiber
- Nominal pore size of 0.01 μm
- Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU
Advantages
- High tolerance for feed water and high-quality filtrate
- Smaller footprint design with CAPEX reduction
- Less energy needed by high flux
- Longer service life by high fouling resistance and mechanical strength
- Economical equivalent module for direct replacement
Applications
- Surface water
- Well water
- Potable water
- Industrial process water
- Reclaimed water reuse
- Pre-treatment of sea water desalination

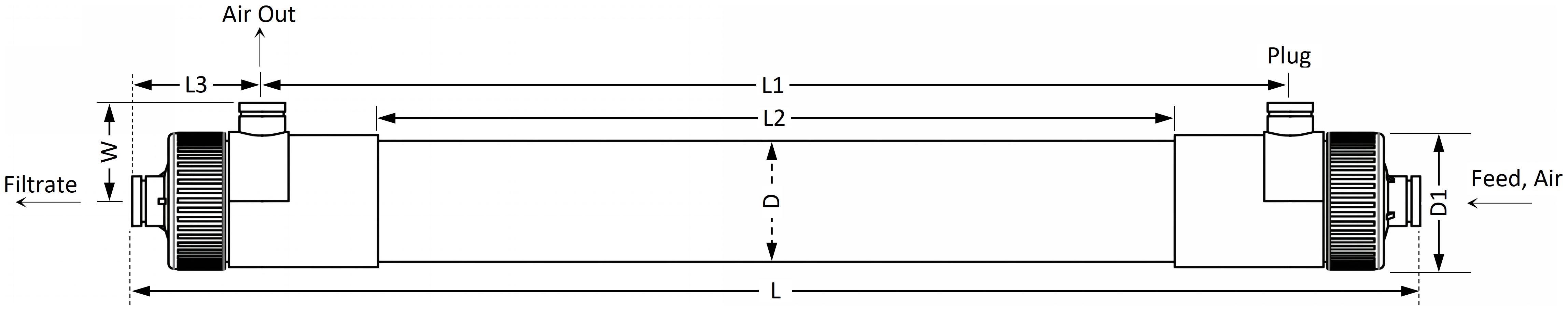

Module Dimensions
|
Model |
L (mm/in) |
L1 (mm/in) |
L2 (mm/in) |
L3 (mm/in) |
D (mm/in) |
D1 (mm/in) |
W (mm/in) |
Feed, Filtrate |
Concentrate |
|
TFHFU-2020AG |
2,160/ 85.04 |
1,724/ 67.87 |
1,314/ 51.73 |
218/ 8.58 |
216/ 8.5 |
248/ |
175/ 6.89 |
Φ89.1/DN80 |
Φ76.3/ DN65 |
Specifications
|
Specifications |
Parameters |
|
Model |
TFHFU-2020AG |
|
Effective membrane area |
90 m² (969 ft²) |
|
Fiber ID/OD |
0.6/1.1 mm (0.02/0.04 inch) |
|
Membrane material |
PVDF (Polyvinylidene Fluoride) |
|
Flow direction |
Outside-in |
|
Pore size |
0.01 μm |
|
Housing material |
PVC |
|
End caps material |
PVC |
|
Potting material |
Epoxy resin |
|
Caps & nuts with housing |
Integrated |
|
O-rings material |
EPDM |
|
Dry weight |
51 KG (112 lbs) |
|
Wet weight filled with water |
105 KG (232 lbs) |
Operating and Cleaning Limits
|
Maximum feed flux |
15 m3/h (66 gpm) |
|
Maximum backwash flux |
16.8 m3/h (74 gpm) |
|
Type of operation |
Dead-end flow |
|
Design flux (25°C) |
36-120 L/m2·h (21.6-71 gfd) |
|
Temperature |
0-40°C (32-104°F) |
|
Maximum feed pressure (25°C) |
3 bar (44 psi) |
|
Maximum trans-membrane pressure |
2 bar (29 psi) |
|
Maximum backwash pressure |
3 bar (44 psi) |
|
Maximum air scour feed pressure |
2.5 bar (36 psi) |
|
Maximum air scour flow |
9 Nm3/hr (5.3 scfm) |
|
pH continuous operation @ 25°C |
2-11 |
|
pH cleaning @ 25°C |
1-12 |
|
Maximum NaClO |
3,000 mg/L |
|
Maximum NaClO exposure (lifetime contact time) as Cl2 |
1,000,000 mg/L hours |
|
Maximum feed TSS |
100 ppm |
|
Maximum feed turbidity |
300 NTU |
|
Maximum feed particle size |
300 µm |
|
Filtrate SDI15 |
≤ 2.5 |
|
Filtrate turbidity |
≤ 0.1 NTU |
