General Information

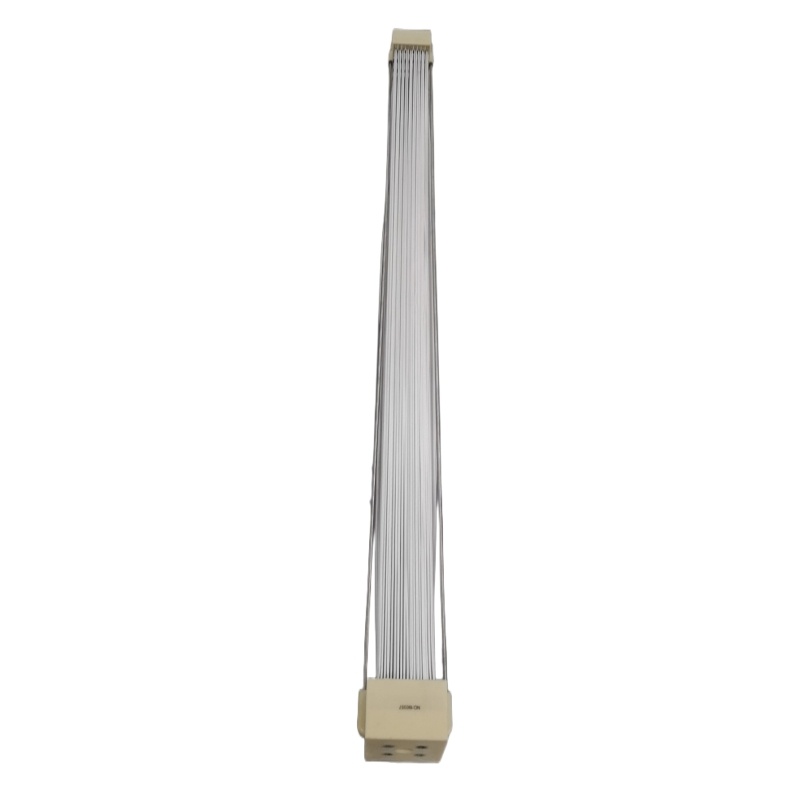

PTFE hollow fiber MBR membrane module is an MBR membrane module made of PTFE hollow fiber for critical industrial wastewater and municipal sewage treatment. Consisting of uniform PTFE hollow fiber membrane, PTFE hollow fiber MBR modules provide excellent physical barrier to suspended solids, bacteria and other pathogens. The uniform pore size distribution ensures high permeability and sustainable high-quality filtrate.The new generation of PTFE hollow fiber MBR modules for MBR applications are upgrade-designed and improved, while continuing to leverage the aeration and header design.
Submerged PTFE hollow fiber membrane modules are providing economical, comprehensive wastewater and sewage solutions to industrial and municipal applications around the globe.
Membrane Characteristics
PTFE material with best chemical resistance and oil resistance
High tensile strength by reinforced membrane
Compact design
Hydrophilic treatment and fouling resistance
Advantages
Suitable critical applications
Extreme long service life to reduce OPEX
Smaller installation space to to reduce CAPEX
Direct and economical module replacement
Applications
Industrial wastewater
Municipal sewage
Submerged filtration
Landfill leachate
Kitchen biogas slurry
Chemical wastewater
Electroplating wastewater
Dyeing wastewater
Module Dimensions
|
Model |
H (mm/inch) |
H1* (mm/inch) |
L (mm/inch) |
W (mm/inch) |
|
TFMW-B6S, TFMW-B6M |
1,300/51.18 |
1,110/43.7 |
164/6.46 |
154/6.06 |
|
TFMW-B12S, TFMW-B12M |
2,410/94.88 |
2,220/87.4 |
Specifications
|
Model |
TFMW-B6S |
TFMW-B6M |
TFMW-B12S |
TFMW-B12M |
|
Membrane Surface Area (m2/ft2) |
6/65 |
12/130 |
||
|
Pore Size (μm) |
0.08 μm |
0.1 μm |
0.08 μm |
0.1 μm |
|
Membrane Material |
Hydrophilic PTFE |
|||
|
Fiber ID (mm/inch) |
1.1/0.04 |
|||
|
Fiber OD (mm/inch) |
2.3/0.09 |
|||
|
Flow Direction |
Outside-in |
|||
|
Cap Material |
ABS |
|||
|
Joint Nut Material |
SS 316L |
|||
|
Sealing Material |
Epoxy resin |
|||
|
Supporting Bar Material |
SS 316L |
|||
|
Module Weight (kg/lb) |
10/22 |
13.5/30 |
||
Operating and Cleaning Limits
|
Flux (LMH) |
8-106** |
|
Flow Type |
Negative pressure suction |
|
Max. TMP (MPa/psi) |
-0.06/-8.8 |
|
Backwash Type |
Permeate backwash |
|
Max. Backwash Flux (LMH) |
200 |
|
Max. Backwash Pressure (MPa/psi) |
0.1/14.5 |
|
Operating Temperature (℃/°F) |
5-50/41-122 |
|
Recommended pH Range |
0 - 14 |
|
Max Active Chlorine (ppm) |
1,000 |
