General Information

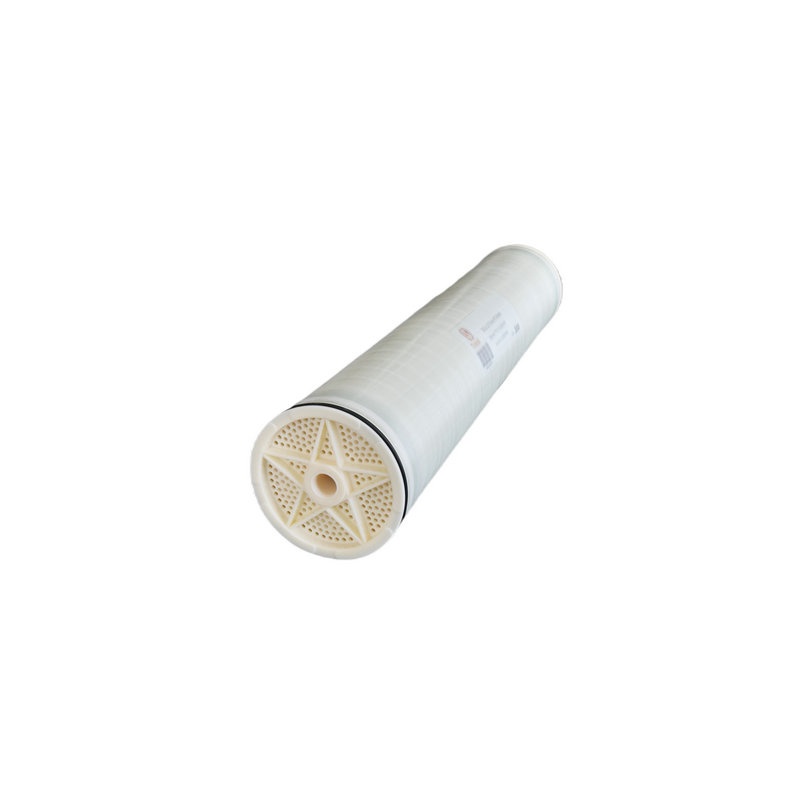

TaFlux SW series reverse osmosis TFSW-8040-440HF membrane element offers sustainable consistency, high rejection rate, low energy performance and lower lifecycle cost.
Features & Advantages
- Stable salt rejection rate at high feed TDS
- Lower operating cost through reduced energy consumption
- Economical equivalent element for direct replacement
Applications
- Seawater desalination
- Minimal or zero liquid discharge
- Landfill leachate sewage treatment
- High-salinity wastewater concentration
- Other applications with feed TDS above 10,000 ppm
Specifications
-
Configuration: Low fouling spiral wound element
-
Membrane Polymer: Polyamide thin-film composite
Performance
Element Model |
Membrane Active Area ft2 (m2) |
Feed Spacer mil (mm) |
Permeate Flow Rate* GPD (m3/d) |
Stabilized Salt Rejection** |
Minimum Salt Rejection |
Boron Rejection |
TFSW-8040-440HF |
440 (41) |
28 (0.712) |
10,500 (39.7) |
99.8% |
99.6% |
93% |
Element Dimensions
Size |
Length L inch (mm) |
Diameter D inch (mm) |
Permeate tube inner diameter d inch (mm) |
Permeate tube Extension L1 inch (mm) |
8040* |
40 (1,016) |
7.9 (201) |
1.125 (28.6) |
/ |
All 8040 elements fit nominal 8.0 inch (203.2 mm) I.D. pressure vessels.
Operating and Cleaning Limits
Maximum Operating Pressure |
1,200 psi (83 bar) |
Maximum Operating Temperature |
45°C (113°F) |
Maximum Chlorine Concentration |
0.1 ppm |
pH Range, Continuous |
2-11 |
pH Range, Cleaning |
1-13 |
Maximum Feed SDI (15 mins) |
5 |
Maximum Element Pressure Drop |
15 psi (1 bar) |
Maximum Feed Flow |
17 m3/h |
Minimum Ratio of Concentrate to Permeate Flow for Each Element |
5:1 |
