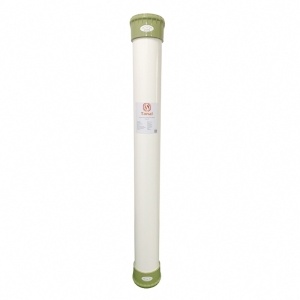

UF Membrane Module TFERV-60

Products

UF Membrane Module TFERV-60

Product No.:TFERV-60

  • Details

General Information

TaFlux ERV series ultrafiltration (UF) membrane module TFERV-60 is a pressurized ultrafiltration membrane module, which is designed and manufactured for the filtration of surface water, potable water, seawater and industrial wastewater. These UF modules are made of new generation PVDF hollow fiber membrane with high fouling resistance and hydrophilicity.
TaFlux ERV series ultrafiltration (UF) membrane module TFERV-60 is applied in new systems, as well as directly connected to existing UF systems as replacements, providing high-quality filtrate by removing suspended solids, colloids, pyrogens, bacteria, viruses and other impurities to protect downstream processes.

Features

  • Outside-to-inside flow direction
  • New generation PVDF hollow fiber
  • Nominal pore size of 0.03 μm
  • Typical filtrate quality SDI ≤ 2.5, turbidity ≤ 0.1 NTU

Advantages

  • High tolerance for feed water
  • High quality raw material
  • Less energy needed by high flux
  • Longer service life by high fouling resistance and mechanical strength
  • Economical equivalent UF membrane module for direct replacement

Applications

  • Surface water
  • Well water
  • Potable water
  • Industrial wastewater
  • Reclaimed water reuse
  • RO pre-treatment
  • Pre-treatment of seawater desalination

Module Dimensions

UF Membrane Module Dimensions

Model

L

D

D1

W

Feed

Filtrate

Concentrate

TFERV-60

2130 mm

(83.86 inch)

258 mm

(10.16 inch)

216 mm

(8.5 inch)

65 mm

(7.1 inch)

1.5” FNPT

1.5” FNPT

1” FNPT

Specifications

Model

TFERV-60

Effective membrane area

60 m² (645 ft²)

Fiber ID/OD

0.7/1.3 mm (0.02/0.05 inch)

Membrane material

PVDF (Polyvinylidene Fluoride)

Flow direction

Outside-in

Pore size

0.03 μm

Bacteria removal

> 99.9999%

Housing material

UPVC

End caps material

UPVC

Potting material

Epoxy resin / Polyurethane

O-rings material

EPDM

Dry weight

55 KG (121 lbs)

Wet weight filled with water

95 KG (209 lbs)

Operating and Cleaning Limits

Type of operation

Dead-end flow or cross flow

Design flux (25°C)

40-120 L/m2·h (24-71 gfd)

Temperature

1-40°C (34-104°F)

Maximum feed pressure (20°C)

2.5 bar (36.2 psi)

Maximum trans-membrane pressure

2 bar (29 psi)

Backwash flux (25°C)

80-120 L/m2·h (48-71 gfd)

Maximum backwash pressure

2 bar (29 psi)

Maximum air scour feed pressure

2.5 bar (36 psi)

Maximum air scour flow

4-12 Nm3/h (2.4-7.1 scfm)

pH continuous operation @ 25°C

2 - 11

pH cleaning @ 25°C

1 - 12

Maximum NaClO

2,000 mg/L

Maximum feed TSS

100 ppm

Maximum feed turbidity

300 NTU

Maximum feed particle size

300 µm

Filtrate SDI15

≤ 2.5

Filtrate turbidity

≤ 0.1 NTU
